High quality Russian PC Connector is offered by China manufacturer Ningbo ACIT Electronics. Buy Russian PC Connector which is of high quality directly with low price. our connectors have a high quality and better price,export to European countries more than 20 years.PY04 series is Developed by Russian style connector PC series.

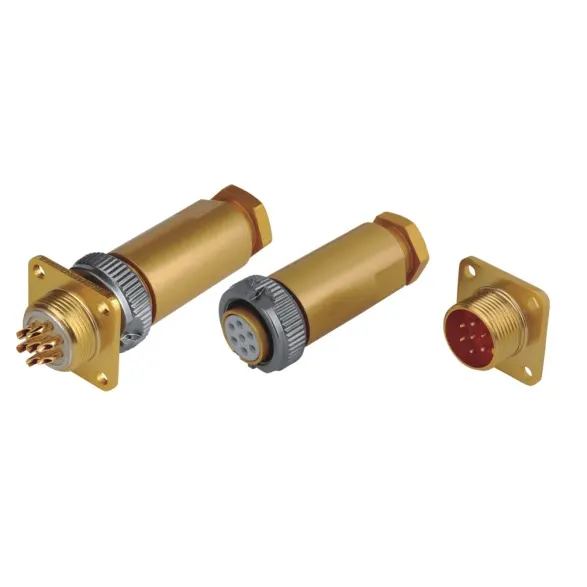

PY04 type circular connector has the features of small size ,light weight , convenient application with threaded-coupling connection .It can be interchanged with Russian type PC series , the pins of connector are gold plated brass,the the body is gold color plated aluminum alloy,the color can be change according to customer's requirement.
Temperature |
-55℃ ~ +150℃ |
Working current |
5A |
Working voltage |
250V |
Contact resistance |
≤0.005Ω |
Shell material |
Aluminum |
Insulator material |
PBT |
Contact material |
Gold plated brass |
Endurance |
500 Cycles |
The connect way of Russian PC Connector is thread way, simply operating ,small volume . They are widely used for the electrical connection between electrical equipment and instrument.
The warranty period of high-quality Russian PC Connector is one year. it can be replaced free of charge if it has quality problem. The waterproof grade has passed the professional testing organization.
PY04 — 4 T/Z
1 2 3
1.Name:PY04 series connector
2.Number of contacts: 4, 7, 10, 19
3. T—plug,Z—receptacle
1.Can I have a sample order?
Yes, welcome sample order of Russian PC Connector to test and check quality.
2.What is your terms of payment?
Usually, we accept T / T, For regular orders, Terms of payment is 30% deposit, the balance paid before shipment.
3.What is the lead time?
It usually takes 10 days after received the advance payment.
4.What is your terms of packing?
it is packed in plastic bag firstly, and then in small box, finally in big in neutral cartons.
5.How long is the warranty period
One year after delivery.
