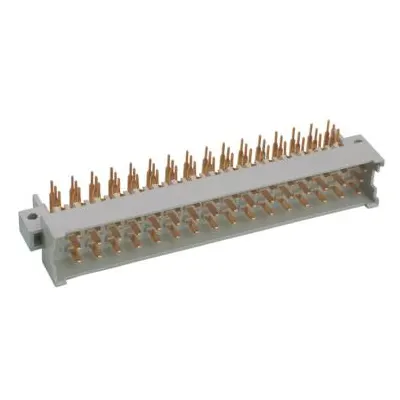

PCB Connector

Ningbo ACIT PCB connectors are one of the high quality industrial connectors of the DIN 41622 F series. The ACIT has a professional technical team to control the quality of the products, and constantly develop new products to meet the market demand. PCB connectors are highly reliable, stable contact novel electrical connectors, its technical indicators and external installation dimensions in line with the IEC603-F standard

Send Inquiry

Product Description

Ningbo ACIT PCB connectors in stock for delivery at any time, large quantities can be sold at wholesale price. PCB connectors specifications are winding type, welding type, cable type and crimping type, etc.

Technical characteristics

Temperature	-55"C~+125*C
Relative humidity	40士2C at (93土2/3) %
Atmosphere	101KPa~6.7Pa
Vibration	5~500Hz, 100m/s2
Shock	10~40strokes/min,250m/s2
DIN41612 Connector	Specification
Type	DIN41612,B,C,Q,R,CD,RD,TYPE
Pitch	0.8mm/1.0mm/1.27mm/2.0mm/2.54mm/3.96mm/5.08mm
Positions	10-160
Current Rating	1.5AAC
Rated Voltage	AC1000V/Minute
Current Resistance(max)	20m ohm
Withstand Voltage(for 1minute)	500V/AC
Insulation Resistance(min)	1000m ohm
Insulator Color	Black/Gray/Colorized
Insulator Flammability	UL 94V-0
Contact materials	Male:Brass/Female:Phosphor Bronze
Contact Plated	Tin or Gold over nickel
Insulator material	PBT LCP PA6T PA9T

Product Feature And Application

PCB connectors product versatility, interchangeable with similar foreign products, and can be changed according to user requirements, the contact configuration and socket termination form to meet the different requirements of the printed circuit board connection, easy to use.
