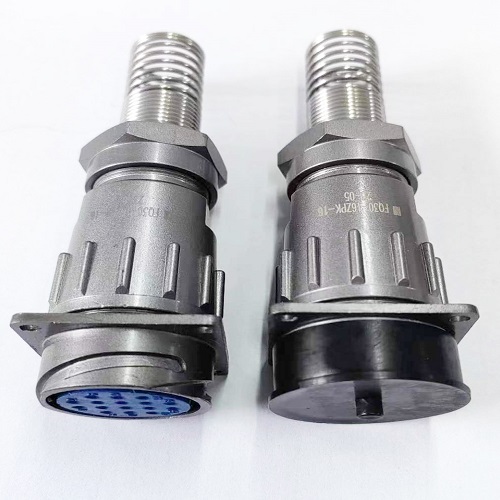

Light rail sensor connector

Product IntroductionofLight rail sensor connector

NingboAcitis a professional supplier, timely delivery, quality and quantity assurance .Light rail sensor connector round electric connectors are manufactured in accordance with the standard DZ4Q/RE008-84 of the Component Industry Administration Bureau of the Ministry of Electronics Industry, Advanced product structure, high reliability, The jack contact uses a highly reliable rat cage elastic contact instead of the traditional wire spring structure.

Technical characteristics

   Temperature             -55℃ ~  +100℃

   Working current         1.0mm-3A  ，1.5mm-10A,2.5mm-25A

   Working voltage         400V

   Contact resistance      1.0≤0.005Ω ,1.5≤0.0025Ω

   Shell material          Aluminum

 Insulator material      NYLON

 Contact material        Gold or silver plated brass

  Endurance               500 Cycles

  IP grade                The connector is subjected to 30 minutes of no water ingress in 1 meter deep water

 Product Feature And Application

Light rail sensor connector is a hot modelround electric connectors have the characteristics of small contact resistance, anti-vibration, shock resistance, strong sealing, etc., and the connector way is a bayonet type quick connection, which is simple to use and easy to operate, and is widely used in the electrical connection between various electronic devices.

Productquality and Certificate

The warranty period ofLight rail sensor connector is one year. it can be replaced free of charge if it has quality problems.

Productsize ofLight rail sensor connector

Product order guide

FQ  14 —  4  T  K  Q  6  S

          1    2      3   4  5  6  7  8

1.Name：FQ series connector

2.Shell size: 14,18,24,30

3.Number of contacts： 2,3,4,5,6,7,8,9,12,19,26,32,42,50

4. T—plug，Z—receptacle

5.,K-female pin ,J-malepin

6.Q-straight (NO WRITE),W- angle

7.Spring size: 6,8,10,12,14,16

8.S-Plastic dust cover(only for receptacle)

Product FAQ of Light rail sensor connector

1. Can I have a sample order?

Yes, welcome sample order of Light rail sensor connector to test and check quality.

2.What is your terms of payment?

Usually, we accept T / T, For regular orders, Terms of payment is 30% deposit, the balance paid before shipment.

3.What is the lead time?

It usually takes 10 days after received the advance payment.

4. What is your terms of packing?

it is packed in plastic bag firstly, and then in small box, finally in big in neutral cartons.

5. How long is the warranty period

One year after delivery.
