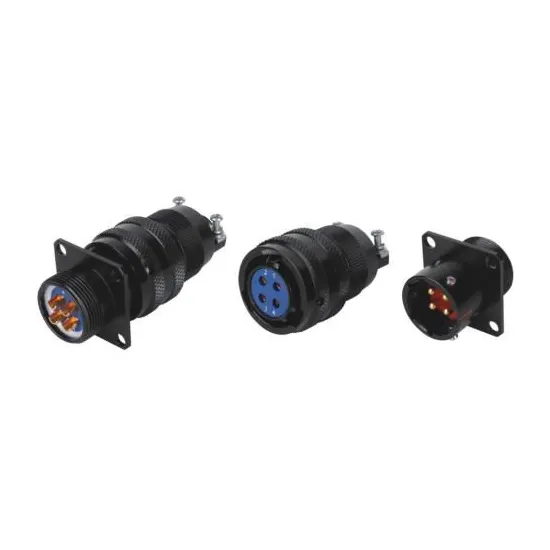

High Speed Equipment Connector

Ningbo ACIT electronic high-speed equipment connector is a high quality sealed type connector comply with GUB101A-1997 standards, and are suitable for the electrical signal connection of strategic weapons systems, space satellite systems, aviation and navigation vehicles, ground launch and receiving systems, high-energy and high-thermal industrial systems, communication and test systems, industrial and traffic power systems, etc.

Technical characteristics

Product Feature And Application

This product is a fast connection and fast separation, small size, light weight and many other advantages of the inner bayonet type locking circular electrical connector. The contact part is welded, and the shell has two kinds of shielding and unshielding, which has the performance of sealing, dustproof and rainproof. Installation methods include flange disc type, nut fastening type, through the wall type, etc.

Product quality and Certificate

The warranty period of High speed equipment connector is one year. it can be replaced free of charge if it has quality problems.

Product size of High speed equipment connector

Product order guide

Y11    X     20  40    Z   J  10  2

1           2                     3      4            5   6  7           8

1.Serise：High speed equipment connector

2.X:Type

3.Monoblock Number: 08、10、12、14、16、20、22、24

4.Number of contacts： 4、7、10、12、16、19、21、26、32、41

5.T：plug，Z：receptacle

6.J：pin of plug,K:pin of socket

7.Termination

8.Cable shell

Product FAQ of High speed equipment connector

1. Can I have a sample order?

Yes, welcome sample order of High speed equipment connector to test and check quality.

2.What is your terms of payment?

Usually, we accept T / T, For regular orders, Terms of payment is 30% deposit, the balance paid before shipment.

3.What is the lead time?

It usually takes 10 days after received the advance payment.

4. What is your terms of packing?

it is packed in plastic bag firstly, and then in small box, finally in big in neutral cartons.

5. How long is the warranty period

One year after delivery.
